Battery Backup Unit

Your Optical Network Terminal (ONT) is installed with a separate Battery Backup Unit (BBU). When a fully charged 12-volt battery is installed in the BBU, you will have up to 8 hours of backup power for basic voice service, including calls to 911.

Note: Internet and TV service will not be available during a power outage even if a fully charged battery is installed. The BBU only provides backup power for voice service.

Battery Backup

Learn about your unit

  • Select your battery unit
    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Place your hand in the inset between the panels and pull the door open from right to left

    • Your battery is located in the top part of the unit.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Your battery is located in the top part of the unit.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Your battery is located in the top part of the unit.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Press the button on the left side of the door. The door will swing open from left to right.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Use a screwdriver to remove the screw securing the access panel. Press the lever on the right side of the Battery Backup Unit (BBU) door. The door swings open from right to left.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Remove the screw that secures the access panel.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Press down on the release tab on the back of the ONT, then pull down the battery cover.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • Release the tabs on the top and bottom of the unit. The door swings to the left. Unstrap velcro strap to remove battery

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • The battery is in the top compartment. To open unit, remove the screw holding the door shut. The door swings from left to right.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • The battery is in the top compartment. To open unit, remove the screw holding the door shut. The door swings from right to left0.

    To access battery on your unit

    Important: Before you begin unplug the Battery Backup Unit from the wall outlet.

    • The battery is in the top compartment. To open unit, depress tab on the top right and swing the door open from right to left..

    • Audible alarms
    • Buttons
    • Lights

    Learn about the alarm

    An alarm will sound once a minute to alert you if the battery it is not fully charged or has been drained completely. This will be repeated until you press the Alarm Silence button.

    Buttons

    Alarm Silence. Press to silence the audible alarm.
    Battery Emergency Use. Press once to reboot the Optical Network Terminal (ONT) and get up to 1 hour of battery life for emergency phone calls. Once pushed, all remaining battery life will be used.

    Lights

    Auxiliary Power Source
    GREEN - auxiliary power available
    RED - auxiliary power not available

    Replace Battery
    RED - battery needs to be replaced

    Battery Power
    RED - Optical Network Terminal (ONT) is operating off battery power; no commercial power available
    BLINKING RED - low battery power

    System Status
    GREEN - normal operation
    BLINKING GREEN - system fault

    • Do I need a battery backup for my service?

    • If you have a backup battery, and do not have voice service through Verizon, or if you do not need voice service during a power outage, you can disconnect the battery.

      How to disconnect the battery

      The steps to disconnect the battery are the same for all battery backup units. Your unit may look different from the one in the illustration below. If you are having trouble accessing your battery, you can view detailed information on where to access your battery by unit type.

      View where to access your battery

      Important: Before you begin, unplug the BBU power from your wall outlet.

      • Then open the battery compartment.
      • Remove the plug connector with the red and black cables by pinching and sliding it out of its location.
      • Gently disengage the retaining clips that hold the battery in place and remove the battery.
      • Disconnect the battery clips from the old battery and set the battery aside for proper disposal. If you are not installing a new battery, proceed to Step 8.
        Save the red and black cable for future use.
      • Remove the plastic covers on the black and red terminals of your new battery. Connect the battery clips to the corresponding black (- negative) and red (+ positive) terminals on the new battery.

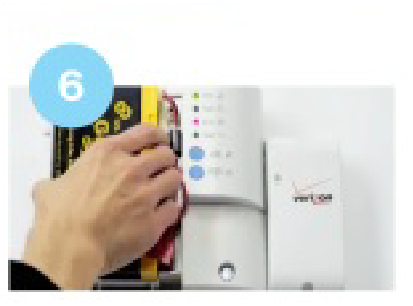

      • Slide the new battery into the battery compartment , securing it underneath the retaining clips.

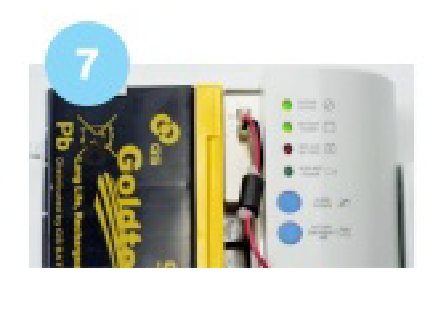

      • Insert the plug connector back into position. If the battery is installed correctly, you'll hear a beep and the battery power and system status lights will be solid green.

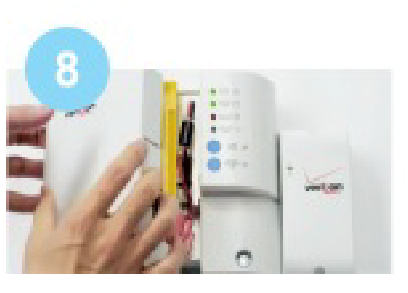

      • Replace the battery cover and plug the BBU back into your wall outlet.
  • You are responsible for monitoring and maintaining your backup battery. Battery age, usage and temperature will impact battery life and performance so reducing the amount of time the batteries remain stored and unused is recommended.

    Only 12-volt 7.2Ah sealed lead acid batteries should be used in the BBU. Batteries should be purchased just prior to replacement as12-volt batteries may not maintain their shelf life when stored.

  • If you have a backup battery, and do not have voice service through Verizon, or if you do not need voice service during a power outage, you can disconnect the battery.

    How to disconnect the battery

    The steps to disconnect the battery are the same for all battery backup units. Your unit may look different from the one in the illustration below. If you are having trouble accessing your battery, you can view detailed information on where to access your battery by unit type.

    View where to access your battery

    Important: Before you begin, unplug the BBU power from your wall outlet.

    • Then open the battery compartment.
    • Remove the plug connector with the red and black cables by pinching and sliding it out of its location.
    • Gently disengage the retaining clips that hold the battery in place and remove the battery.
    • Disconnect the battery clips from the old battery and set the battery aside for proper disposal. If you are not installing a new battery, proceed to Step 8.
      Save the red and black cable for future use.
    • Remove the plastic covers on the black and red terminals of your new battery. Connect the battery clips to the corresponding black (- negative) and red (+ positive) terminals on the new battery.
    • Slide the new battery into the battery compartment , securing it underneath the retaining clips.
    • Insert the plug connector back into position. If the battery is installed correctly, you'll hear a beep and the battery power and system status lights will be solid green.
    • Replace the battery cover and plug the BBU back into your wall outlet.

    Changing your battery backup

    To better assist you with disconnecting and installing new batteries in your BBU, we've created a simple two minute video that can walk you through each step. Click on the video to the right to start watching.



Fix battery issues

  • An alarm will sound once a minute to alert you if the 12 volt battery in the battery backup unit (BBU) is not fully charged or has been drained completely. Your battery unit may look different from the one in the illustration below. The steps to mute battery beeping are the same for all battery backup units.

    How to stop the beeping

    Locate your battery backup unit (BBU)

    • Press and hold the Alarm silence button for 10 seconds.

    • You should either hear a loud beep or the lights will flash on and off. If you did not get a beep or flashing lights, press and hold the Alarm silence button and the emergency use button together for 10 seconds.

    • The above steps will reboot your BBU and clear the alarm.


    BBU alarm silece buttons

    Note: The reboot will temporarily disrupt all your Fios services and take between 3 to 5 minutes to complete.

  • Use our Guided Solutions Tool to resolve troubles you may be experiencing with loss of power to the battery backup unit or silencing the beeping alarm. You can also be guided through steps on how to replace and dispose of the battery.

    Fix Issues

Have an old battery?

  • 12 volt 7.2Ah sealed lead acid batteryYou can purchase a new battery from Verizon by visiting verizon.com/fiosaccessories or you may purchase one from a third-party vendor. If you choose to purchase your replacement battery from a third-party vendor, please make sure that you are purchasing a 12-volt 7.2Ah SLA (Sealed Lead Acid) battery.

    Buy battery now

    Note: Only 12-volt 7.2Ah sealed lead acid batteries should be used in the battery backup unit. Batteries should be purchased just prior to replacement as 12-volt batteries may not maintain their shelf life when stored.

  • When replacing your battery, please make sure to dispose of your old battery properly. For more information about recycling, you can contact Call2Recycle at 1.877.RECYCLE (1.877.273.2925) or visit call2recycle.org to find a list of the drop-off locations closest to you. You may also visit http://www.ehso.com/ehshome/batteries.php or call the EPA at 202.272.0167 for instructions. Your local municipality may also have information about proper disposal of batteries.
