Fios Network Adapter

Connect and Manage Multiple Devices with One Adapter

  • Enhance home/business network with Wired speeds
  • Includes 4 ethernet ports
  • See Overview Tab for compatability requirements

Compatible with Fios.

Note: This product is intended for Verizon customers who subscribe to Fios Internet. It is compatible with the Fios Advanced Wi-Fi Router, and Fios Quantum Gateway Router.

    Connect and Manage Multiple Devices with One Adapter

    The new Fios Network Adapter brings wired speeds to your entertainment center and other locations, delivering HD video, online gaming, and high speed networking directly to your devices.

    The Fios Network Adapter lets you turn a coaxial port in your home into a high speed Ethernet connection with the reliability and performance of a wired connection. With four ports at your disposal, the Fios Network Adapter ensures you'll have more wired connections for all your devices in the home entertainment center, home office, or other high density location. Connect the HD TV, streaming media device, set top box, gaming console and more. This plug-and-play device is compatible with any device that has an Ethernet port.

    Easy Install

    A Fios Network Adapter can be placed anywhere in your home near a coax outlet where an Ethernet connection is needed. Most do-it-yourself consumers can complete the installation in just a few minutes.

    Key Features
    • MoCA 2.0
    • 4 Gigabit Ethernet Ports
    • Works over home or business existing coaxial wiring
    • TR-069 capabilities

    Not available in CA

    RF Interface

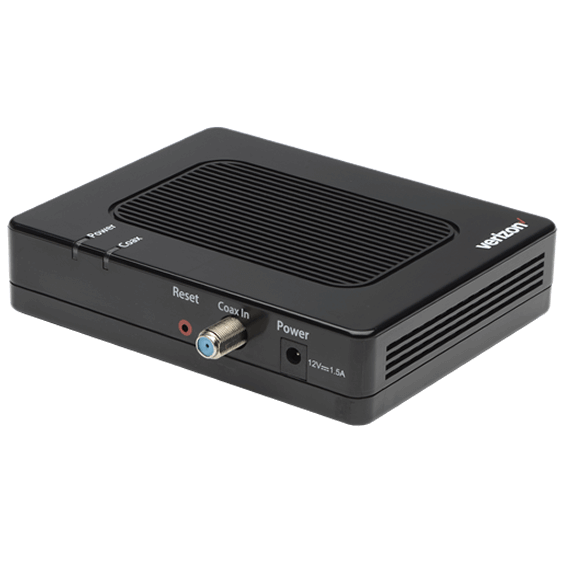

    Fios Network Adapter - Port view
    • Connector: F-type
    • Impedance: 75 Ω
    Coax In Frequency Range
    • Extended D-band: 1125 ~ 1675MHz
    Transmit Power
    • Max: 7 dBm
    • Typical: 2 - 5 dBm
    Network Size
    • 16 Devices (Including NC)
    • MoCA Privacy Password
    Ethernet Interface
    • Connector Type: RJ45
    • Configuration: Four Ports
    • 10/100/1000 Base T 802.3ab Ethernet LAN
      Note: 1000 BaseT speeds may be restricted by MoCA protocol being used
    MoCA Version

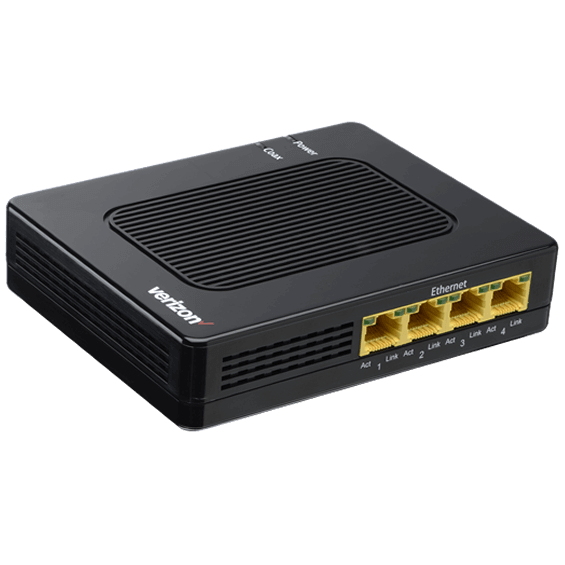

    Fios Network Adapter - Ethernet ports view
    • Bonded MoCA 2.0
    • MoCA 2.0
    • MoCA 1.1
    • MoCA 1.0
    Link Delay
    • Typcial: 2.5 ms
    • Max: 3.0 ms
    Device Management
    • Password-protected access
    • Statistics logging and reporting
    • Remote Management: TR-069, TR-181
    • Local Management: WebUI, CLI (SSH)
    • IEEE 1905
    Power Adapter
    • Input 100-240V @0.6 A
    • Output 12VDC @ 1.5 A
    Environmental Conditions
    • Ambient Temperature Range: 0-40 degrees C
    • Storage Temperature Range: -20-85 degrees C
    • Operating Humidity: 10% - 85% Non-condensing
    Regulatory Approvals/Certifications
    • FCC 15B
    • UL, cUL, 60950-1
    • ITU-T K.21
    • MoCA
    • RoHS/SNE
    Defective Equipment Return Policy:

    You may return any Equipment or Other Devices you purchased from us for any reason within thirty (30) days of purchase. Defective Equipment may be returned within one (1) year of Equipment purchase or activation, whichever is earlier. You must contact us to return any defective Equipment. If you return Equipment, we may replace it with a new or refurbished item, or we may refund payment for purchased Equipment.
    Go to for more details.

    Technical support:

    All technical support for this product is provided by Verizon.

    Others also viewed

    , , ,

    This Fios Network Adapter has a Coaxial input and acts as a bridge to 4 Ethernet ports. In addition to providing ethernet ports it also acts as a signal booster or repeater on your home network. It's ideal for TV devices when there is no ethernet port nearby but you have Fios TV service to that area already via a coax connection.
