Verizon Jetpack 4G LTE Mobile Hotspot MiFi 5510L - Insert / Remove SIM Card
Here's how to properly insert or remove a SIM card for your Verizon Jetpack - MiFi 5510L.
Instructions on inserting/removing your SIM can help with activation issues/errors and connectivity issues.
Don't attempt to insert/remove the SIM card while your Verizon Jetpack® 4G LTE Mobile Hotspot MiFi® 5510L is powered on. Doing so can harm the SIM card and/or the device.
- Ensure the device is powered off.

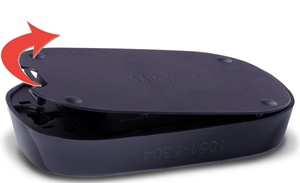

- Remove the battery cover.Utilizing the provided slot, carefully lift then detach the cover.

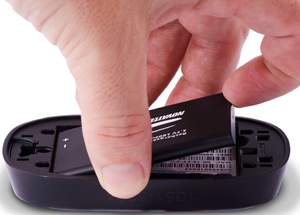

- Utilizing the notch, lift then remove the battery.
- Lift the SIM card hinge.
- Do one of the following:

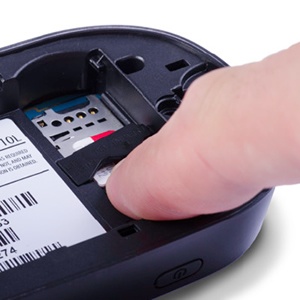

- Insert SIM cardWith the gold contacts facing down and the notch located in the upper-left, insert the SIM card as shown.

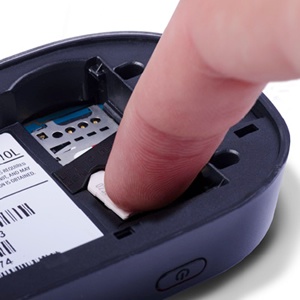

- Remove SIM cardIf the SIM does not slide out easily, continue to hold the SIM hinge and push the SIM card from the top to dislodge.
- Replace the SIM card hinge.Press down on the hinge to lock it into place.
- Insert the battery.Ensure that the connectors on the battery align with the connectors on the device.
- Replace the battery cover.
